C.Scope
C.Scope YIRC-33-8 Signal Clamp
Optimised for transmitting a 33kHz or 8kHz signal through cables via wraparound method
£199.00 +VAT
In stock
- Next-day UK delivery on in-stock items
- 5-year manufacturer warranty & support
- 30-day no-quibble returns
Need advice? Talk to a survey specialist
Call 01522 697777 or email our team — we use this kit on site every day and can help you choose the right configuration.
Product overview

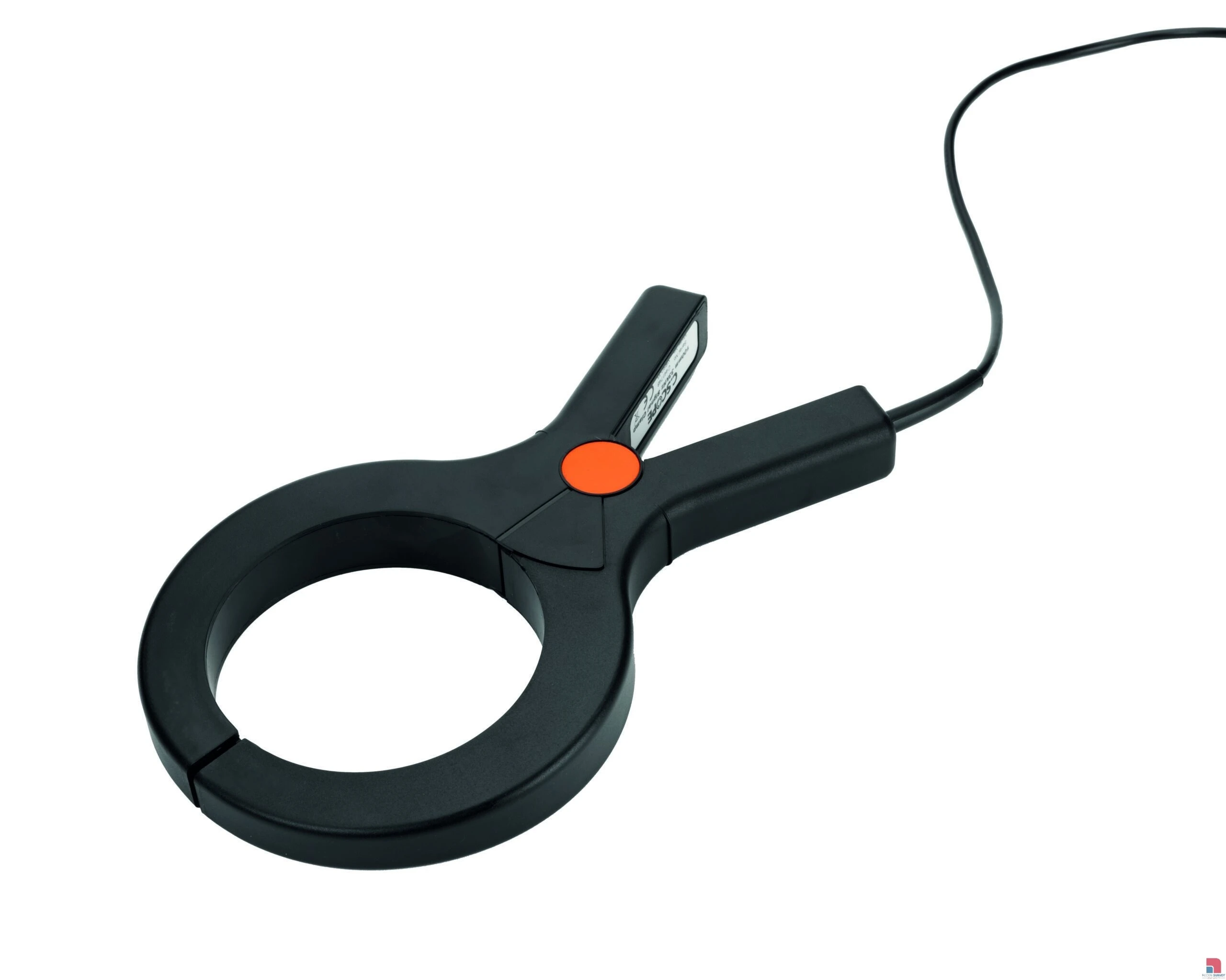

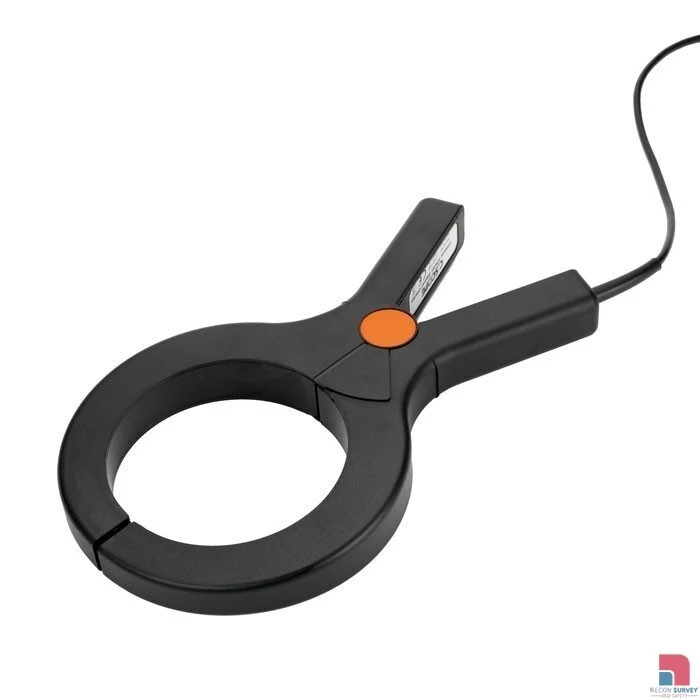

C Scope Signal Clamp
A Signal Clamp is a safe and straightforward way to apply the Generator/Transmitter signal to a cable or small pipe to enable precision tracing of this service.
The C.Scope Signal Clamp allows operators to apply the Signal Generator/ Transmitter signal effectively to any cable.
It is an extremely practical way to allow individual cables to be traced even when the cable is in amongst other cables.
Specification:
- Product Name - Signal Clamp.
- Part No. - YIRC-33-8.
- Construction - Toroidal induction ring housed in robust plastic.
- Spring loaded jaws.
- Optimisation - Tuned for optimum use with 33kHz Signal Generators.
- Safety - Built to conform to BSEN61010-1:1993 and BSEN 61010-2-032:1995.
- Dimensions - 270 x 160 x 28mm.
- Compatibility - Maximum service diameter = 105mm.
- Suitable for use with all C.Scope Signal Generators and Transmitters.
Key features
- Robust Plastic Housing
- 100mm Diameter
- Spring Enhanced Jaws
- Compatable with 33kHz Signal Generators
