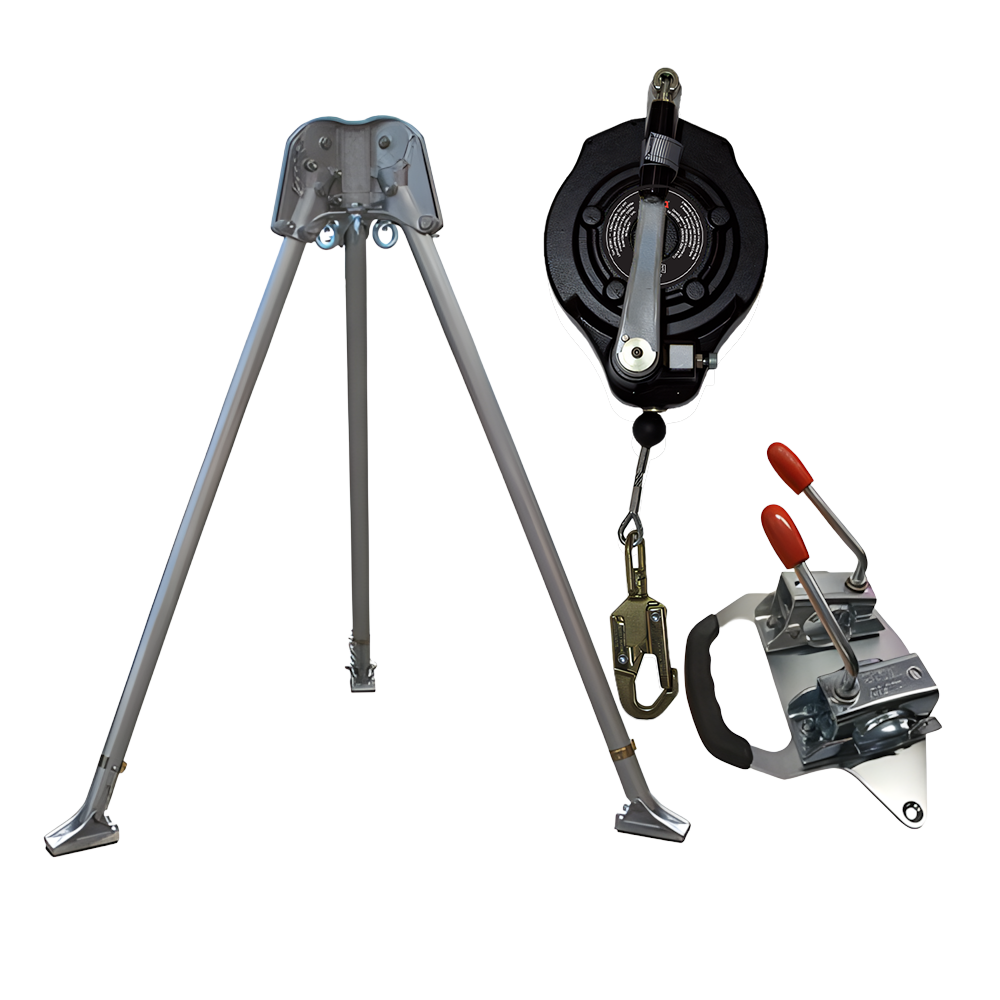

Abtech Safety CST1KIT Confined Space Tripod Kit

The Abtech Safety CST1KIT is a complete confined space entry and rescue set built around the T3 tripod. The lightweight aluminium alloy tripod can be carried and erected by one worker, with individually adjustable legs for stability on uneven ground, a working height of 140cm to 240cm and six anchor points tested to EN795. The kit adds the AB15RT 15m fall arrest recovery device, a retracting galvanised steel cable that arrests a fall with controlled deceleration and has an integral winch so the top man can raise or lower the user to safety. The T05T bracket fixes the winch to the tripod. Safe working load 250kg at a 6:1 safety ratio.

T3 Tripod

The tripod is the basis of a confined space entry and rescue system giving a strong, stable and portable anchorage point for fall arrest and recovery systems. One worker can carry and erect the sturdy but lightweight aluminium alloy tripod

For stability, the tripod legs may be individually adjusted

The T3 has 6 anchor points tested to EN795. The 3 overhead pulleys hold up to 11mm rope. The extra anchor points may be used with pulleys for a double roped rescuer, back-up system, airlines, communication lines, medical kits, tools etc

Features:-

• Designed for 2 persons, SWL 250Kg 6:1 safety ratio
• 3x Overhead Pulleys
• 3x Underslung Eyes
• Adjustable from 140cm – 240cm
• Leg span: 110cm – 170cm
• Certified to EN795 Type B
• Weight: 19.4kg

AB15RT 15mtr Fall Arrest Winch

The TORQ 15m Fall Arrest Recovery Device is designed to provide fall protection from falls from height

Anchored above the user, it gives the user a safe area of work

The retracting line pays in and out of the device as the user moves

In the event of a fall, a brake engages, arresting the fall of the user with a controlled deceleration force

The AB15RT has an integral winch mechanism, so in the event of a fall, the top man will be able to raise or lower the user to a safe area

Swivel anchor eye on top

Cable: 15mtr x 5mm Galvanised Steel

Maximum user weight: 150kg

Weight: 10.4kg

Conforms to EN360, EN1496

T05T Bracket

The T05T Bracket attaches the AB15RT Winch to the T3 Tripod
