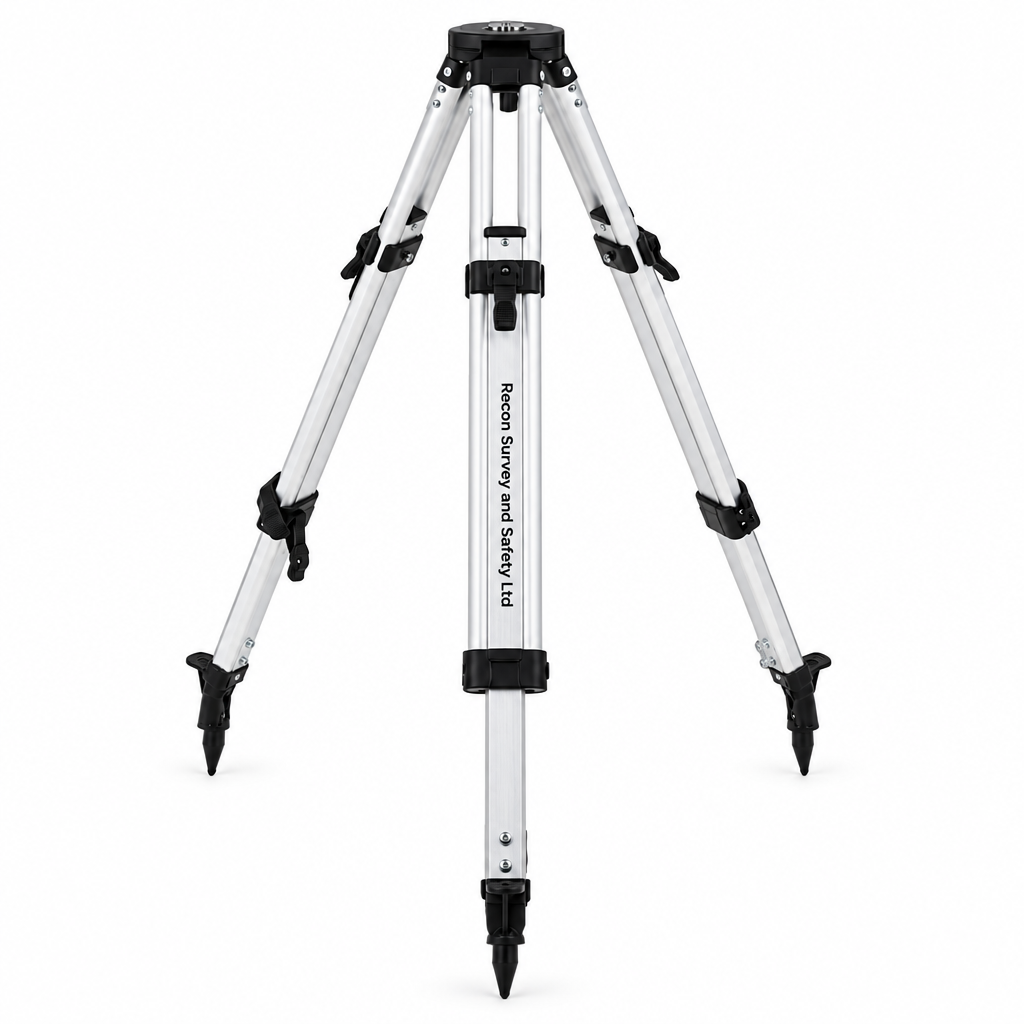

Medium Duty Aluminium Tripod

A medium duty aluminium tripod designed for use with automatic levels, rotating lasers and theodolites. The triangular 145mm metal head plate suits theodolite work where the instrument must be set perpendicular over a point, and the central locking screw is movable. Quick-locking eccentric clamping levers are shaped for easy handling with gloves on, and the anodised aluminium tubes slide without jamming, so the legs do not wear with repeated use. All plastic components are robust polymer fibreglass, and the solid tips grip on site. Working range is 90cm to 170cm, transport length 106cm and weight 3.6kg. Manufactured in accordance with ISO 12858-2-H. A good general purpose tripod for the rotating lasers, levels and theodolites we sell and hire.

• Specially designed for use with levels, rotating lasers and theodolites.
• The triangular head plate is ideal for use with theodolites, when the instrument has to be positioned perpendicular over a certain point.
• Quick locking with ergonomically designed excentric clamping levers for easy handling – even with gloves on.
• High quality aluminium tubes and profiles.
• The anodized aluminium parts are weather-proof for toughest use.
• The tubes slide without jamming, preventing the material from wearing.
• Tripod head made of metal.
• The central locking screw is movable.
• Plastic components are all robust polymer-fibreglass.
• Solid tips.
• 145 mm head
• Working range: 90 – 170cm
• Transport length: 106cm
• Weight: 3.6kg

• In accordance with ISO 12858-2-H
