Nedo

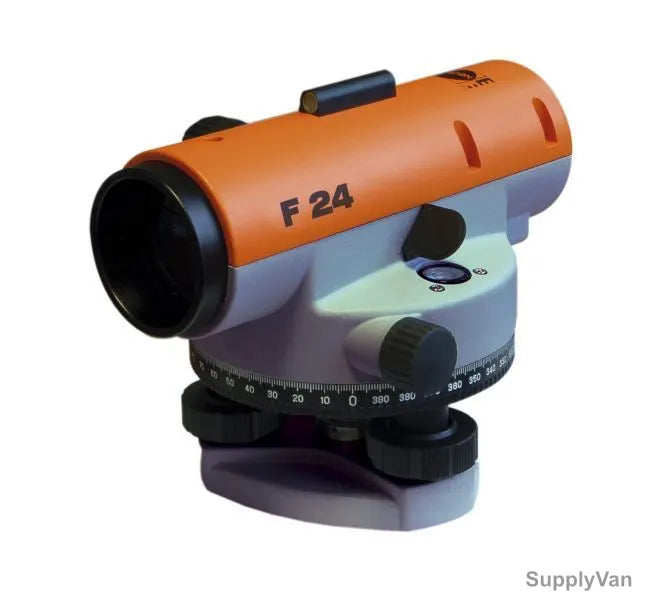

Nedo F24 Automatic Level
The F-levels feature first-class optics with 24x magnification.
£105.00 +VAT
In stock
- Free next-day UK delivery on orders over £200 ex VAT
- 5-year manufacturer warranty & support
- 30-day no-quibble returns
Need advice? Talk to a survey specialist
Call 01522 697777 or email our team — we use this kit on site every day and can help you choose the right configuration.
Product overview
The F-levels feature first-class optics with 24x magnification, a top-quality magnetic-damped compensator and a modern design. Just right for the use under tough conditions.
Features:
- Automatic builder’s level with 24x magnification
- Bright optics with large objective aperture
- Sturdy, reliable magnetic-damped compensator
- High-contrast image
- Inspection record
Key features
- Automatic builder’s level with 24x magnification
- Bright optics with large objective aperture
- Sturdy, reliable magnetic-damped compensator
- High-contrast image
- Inspection record
Technical specification
- Weight
- 1.26 kg
- Optics
- Upright
- Magnification
- 24x
- Clear Objective Aperture
- 30mm
- Shortest Focusing Distance
- 0.6m
- Additive Constant
- 0
- Multiplication Factor
- 100
- Compensator Operating Range
- ±15'
- Setting Accuracy
- ±0.5"
- Horizontal Circle
- 400 gon
- Sensitivity of circular bubble
- 8 ½ mm
- Standard deviation per km double-run levelling
- ±2.5mm
- Protection Class
- IP54
- Connecting Thread
- 5/8"
- Comes With
- Comes with plumb bob, adjusting pin and robust case.
