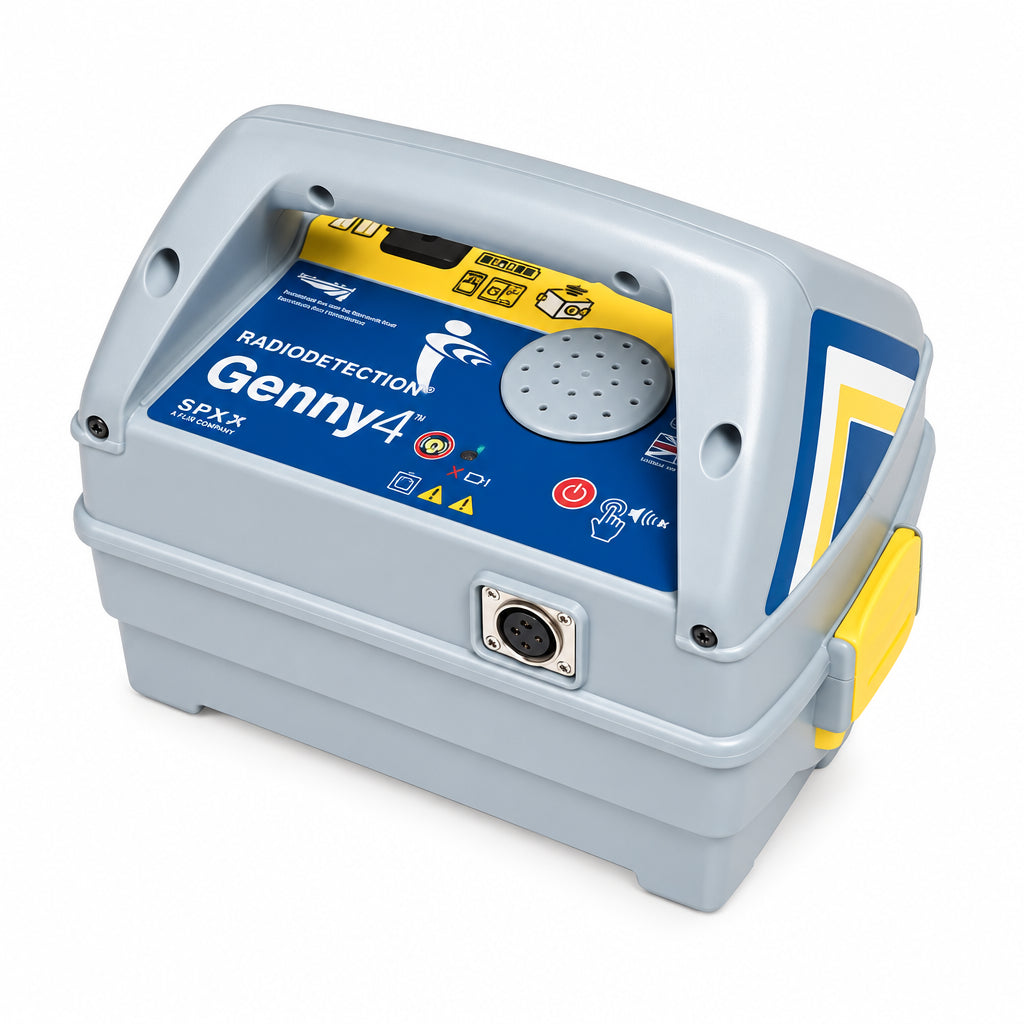

Radiodetection Genny4

The Radiodetection GENNY4 represents a significant evolution in utility locating technology, providing a sophisticated dual-frequency signal output. By combining the industry-standard 33 kHz frequency for general utility tracing with a specialized Small Diameter Locate frequency, the GENNY4 enables operators to identify difficult-to-trace assets such as telecoms, data lines, and street lighting. This dual-frequency approach is engineered to reduce strike risks by detecting twisted pairs and drop-offs that standard signal generators often miss.

How does the dual-frequency output improve utility detection?

The GENNY4 transmits a simultaneous 33 kHz signal alongside a high-frequency Small Diameter Locate signal. This configuration allows for the detection of thin cables like CATV feeds and telecoms spurs that are typically non-responsive to standard tracing frequencies.

What are the benefits of the GENNY4 Power Boost function?

The integrated Power Boost feature allows the operator to increase the signal output by up to tenfold. This amplification facilitates utility tracing across significantly greater distances and enables detection at deeper underground depths than standard operating modes.

Is the GENNY4 certified for rail and industrial applications?

Yes, the GENNY4 is Network Rail Certified, ensuring it meets the rigorous reliability and safety standards required for infrastructure projects. It is also backward compatible with all C.A.T3 and Genny 3 accessories, preserving your existing equipment investments.

Technical Specification Table
