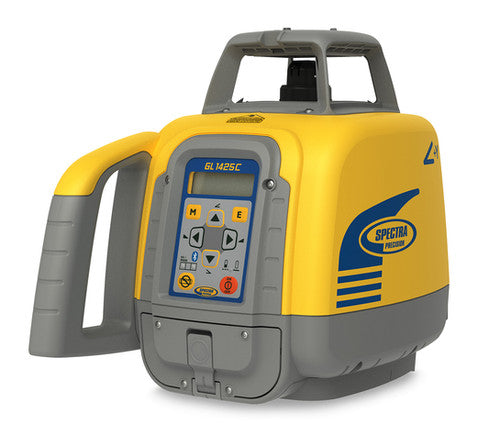

Spectra GL1425c DUAL-GRADE

Applications:

• Grading and excavating

• Leveling concrete forms and footers

• General construction vertical alignment and plumb such as anchor bolt and form alignment

• Sports fields, tennis courts and driveways

• Steep slope road embankments and ditch banks

• Ramps and drainage

FEATURES & BENEFITS

Self-Leveling – Automatic horizontal and vertical leveling

Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)

Working range of 800 m (2,600 ft) diameter

Automatic Grade Matching – Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok

Height of Instrument Alert – unit stops rotating when jarred to avoid erroneous readings

Rotation selection of 300, 600 or 900 RPM

Rugged – Extremely durable and portable

5 Year warranty

• Simplifies level, grade and vertical alignment setups

• Increases reliability, accuracy and durability

• Easy to transport, easy to carry, easy to store

• Energy-efficient design offers long battery life

• Highly durable design enables the GL1425C to survive a drop up to 1 m (3 feet) onto concrete

• Remote control or remote control app allows operation of all laser functions from anywhere on the job-site

• Multiple configuration options

SPECIFICATIONS

Grade Range, No Pre-tilt: typ. ± 9 %

Grade Range with Pre-tilt: ± 15 %

Rotation Speed: 300, 600, 900 rpm

Operational Diameter,  with HL760: 800 m (2600 ft)

Laser Type: 630 – 643 nm

Laser Class: Class 2

Self Leveling Range Typ. ± 5° (± 8.7%)

Radio Range (HL760): Up to 100m (330 ft)

Power Source: 10000 mAh NiMH battery back or 4 x 1.5V D alkaline batteries

​Battery Life Time: Typ. 45 hours

Battery Charging Time: < 10 hours

Tripod Attachments: 5/8 x 11 horizontally and vertically

Dust and Water Proof (IP): IP66

Kit constists of:

GL1425C Dual grade laser level (rechargeable) HL760 Laser reciever with clamp Vertical adapter for HL760 RC1402 Radio remote control Rechargeable batteries Charger Carry Case Quick user guide and safety instructions
