Save £0.00
Recon Survey & Safety
Nedo Primus 3 H2N Grade Laser
Fully automatic dual slope laser with tilt control and automatic re-levelling when in slope mode, AutoTarget, FindX and PlaneLock X/Y
£2,245.00 +VAT
In stock
- Free next-day UK delivery on orders over £200 ex VAT
- 5-year manufacturer warranty & support
- 30-day no-quibble returns
Need advice? Talk to a survey specialist
Call 01522 697777 or email our team — we use this kit on site every day and can help you choose the right configuration.
Product overview

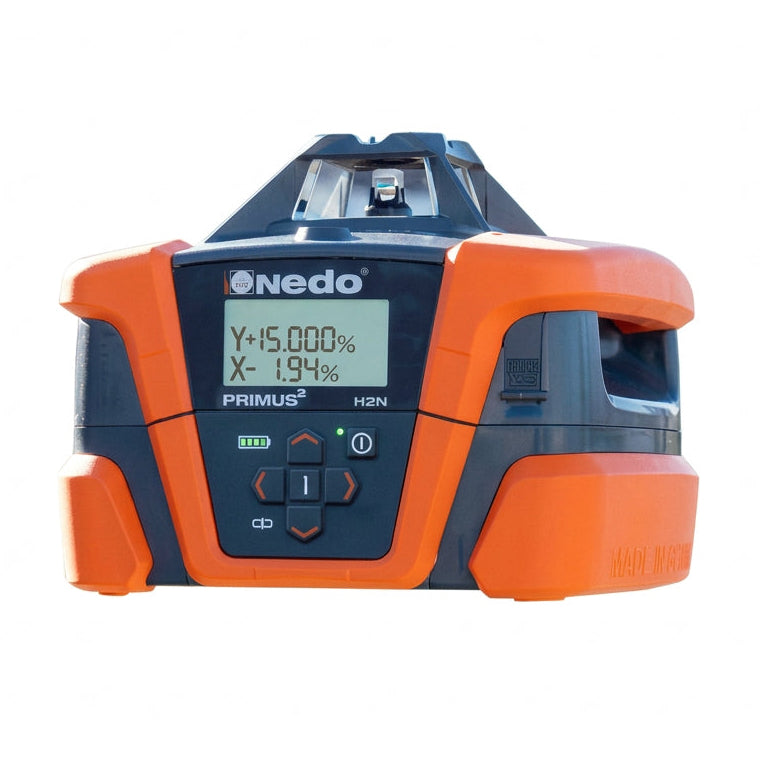

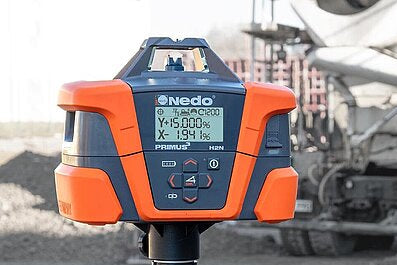

Nedo PRIMUS 3 H2N
Fully automatic dual slope laser with tilt control and automatic re-levelling when in slope mode, AutoTarget, FindX and PlaneLock X/Y
Features:
- Fully automatic dual slope laser
- Robust, motor-powered levelling
- Inclinations in one or two axes with convenient % input for X and Y axes with 3 decimals
- TemperatureControl: Automatic temperature compensation
- PlaneLock X/Y: the tilt level is not monitored by the tilt sensor, but by COMMANDER 3. Advantageous in continuous use.
- AutoTarget function (Y-axis) for automatic axis alignment
- FindX: simple and precise alignment of the X-axis
- Slope value once input is stored beyond switch-off
- Tilt control: the position of the laser plane is continuously monitored in the slope mode and re-levelled if necessary.
- Automatic level control stops the laser if it receives a heavy jolt. In this way, height errors are avoided.
- Large, clear display showing inclination, rotation speed, battery level, etc.
- Available with highly visible high-power laser diode (laser class 3R) or with bright beam technology (laser class 2)
- Rotor protection made of robust die-cast aluminum

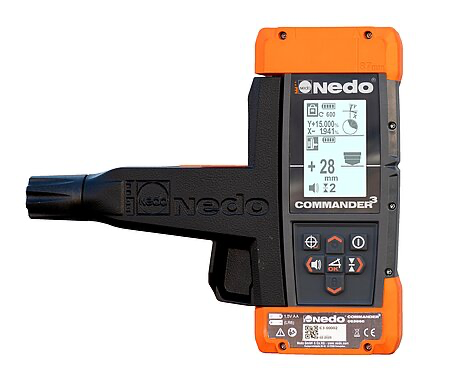

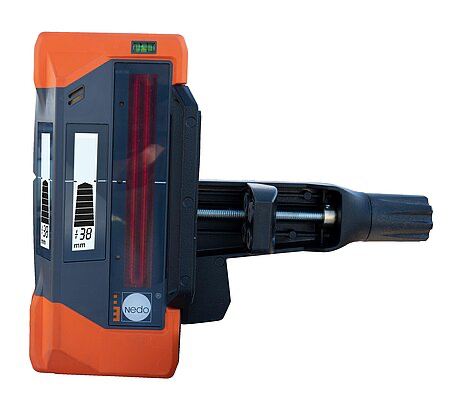

- COMMANDER 3 with large reception field. For complete remote control of the PRIMUS 3
- SegmentControl
Technical specification
- Nedo PRIMUS 3 H2N Technical Data
- Levelling accuracy ± 0.5 mm/10 m Self-levelling range approx. ± 8.5° motor-powered, with automatic level control Setting of slope function (X/Y-axis) ± 15% Accuracy of the slope function ± 0.015% Working range Ø approx. 700 m with receiver COMMANDER 3 Working range radio remote control up to 150 m Laser < 5 mW, laser class 3R, 635 nm or < 1mW, laser class 2, 635 nm Rotating speed 600 rpm, 900 rpm or 1200 rpm Protection class IP 67 Power supply Li-ion rechargeable battery Operation duration up to 40 h Connecting thread 5/8’’ Multi-function module COMMANDER 3 Technical data: Accuracy switchable, ± 0.5 mm, ± 1 mm, ± 2 mm, ± 4 mm and ± 8 mm Working range Ø 700 m (depends on laser) Length of detector field 120 mm Protection class IP 67 Power supply 2 x 1.5 V (AA) Operation duration up to 80 h
