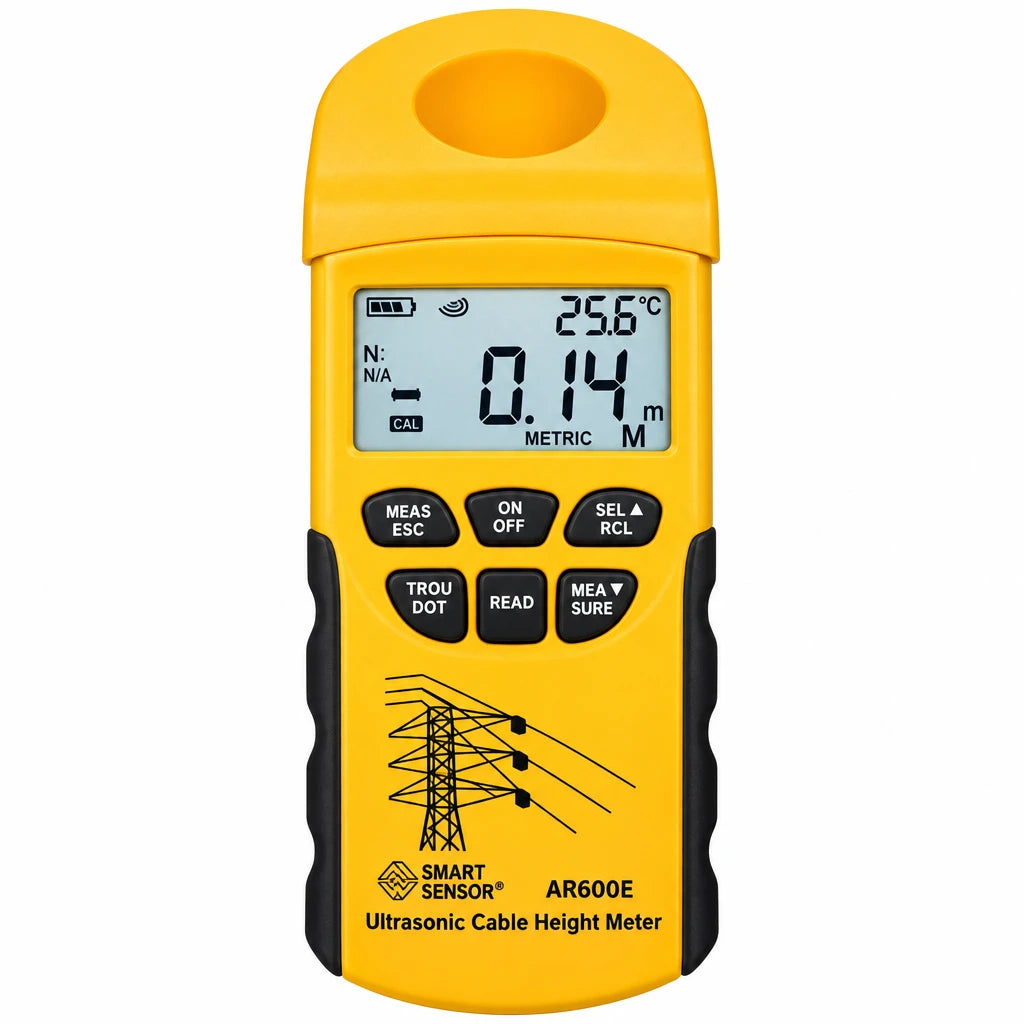

Ultrasonic AR600E Cable Height Meter

SKU:

£225.00 +VAT

In stock

Need advice? Talk to a survey specialist

Call 01522 697777 or email our team — we use this kit on site every day and can help you choose the right configuration.

Product overview

Measures overhead cable heights up to 23 meters (75 feet) depending on the wire diameter.

Measuring Ranges by Cable Size

According to the Smart Sensor Official Specifications:

25 mm minimum cable diameter: 3 to 23 meters

12 mm minimum cable diameter: 3 to 15 meters

5.5 mm minimum cable diameter: 3 to 12 meters

2.5 mm minimum cable diameter: 3 to 10 meters

Horizontal measuring range: 3 to 18 meters [1]

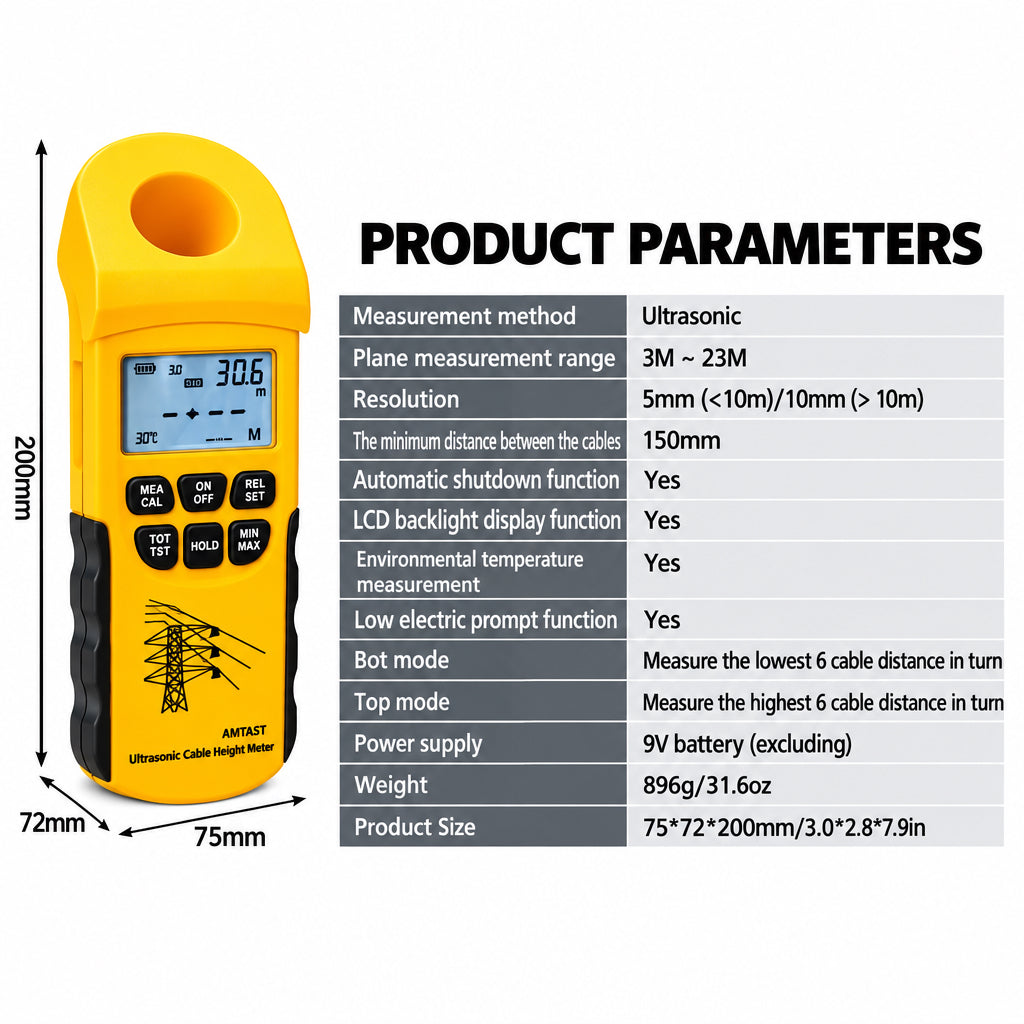

Key Technical Specifications

Measuring accuracy: ±0.5% ± 2 digits

Resolution: 5 mm (for ranges under 10m); 10 mm (for ranges over 10m)

Minimum space between wires: 150 mm

Modes: BOT mode (measures the lowest 6 cables) and TOP mode (measures the highest 6 cables)

Power supply: One 9V 6F22 / PP3 battery
