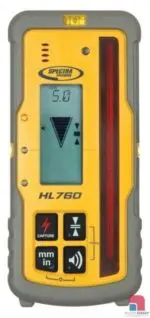

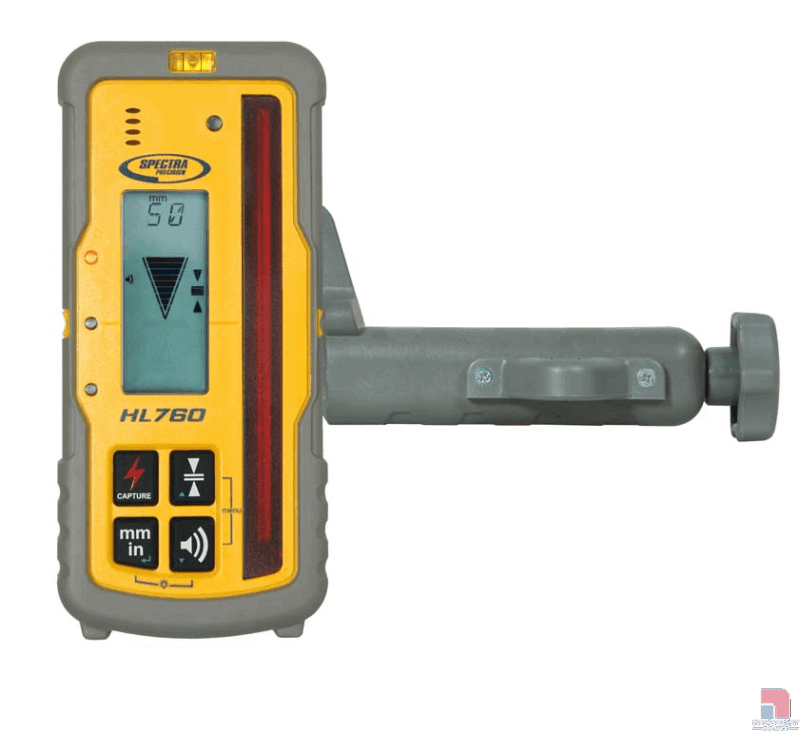

HL760 Laser Receiver

The HL760 features a digital readout of elevation that provides a numeric display of ± 5 cm (± 2 inches). The readout is displayed on the large front and rear LCD’s and shows exactly how far the elevation is from on-grade for fast and easy cut/fill readings. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity. Selectable units of measure can be displayed meeting your application – mm, cm, ft, in or fractional inches.

A 12.7 cm (5 inch) reception height, more than double the industry standard, allows quick acquisition of the laser beam. An anti-strobe sensor prevents false readings from site strobe lights.

Radio communication allows working with another HL760U or HL760 for long range remote display and monitoring capability. A new function termed “Fingerprinting” links the receiver with a particular laser. Once the receiver is paired with the laser transmitter, the receiver has the ability to filter out other lasers that strike the receiver and only accept the laser that it is paired with. The HL760U also provides grade matching and PlaneLok capabilities with the 400 series lasers.

The Digital Readout Receiver is designed to survive the tough construction site conditions; it is totally waterproof and can withstand a drop of 3 meters (10 feet) onto concrete. The HL760 offers a 3-year “No Excuses” warranty.
