Nedo X-Liner 3D Green

Name: Nedo X-Liner 3D Green
Brand: Recon Survey & Safety
Availability: InStock

£315.00 – £395.00 +VAT

The green, highly visible laser lines and the robust self-levelling
allow quick and uncomplicated levelling, alignment, plumbing and
the removal of right angles in interior construction.

Thanks to the multifunctional wall bracket, the X-Liner 3D green can be attached to the ceiling profile using a clamp, to steel beams using magnets or to a wall using a screw. Of course, it can also be used on the floor or on a tripod, since the wall mount has a base with a 5/8″ and 1/4″ connection thread.

Nedo X-Liner 3D Green £315.00 – £395.00 +VAT

Add Accessories

Clear

Ask a Question

Add to wishlist

Download Catalog

Questions? Request a Call Back

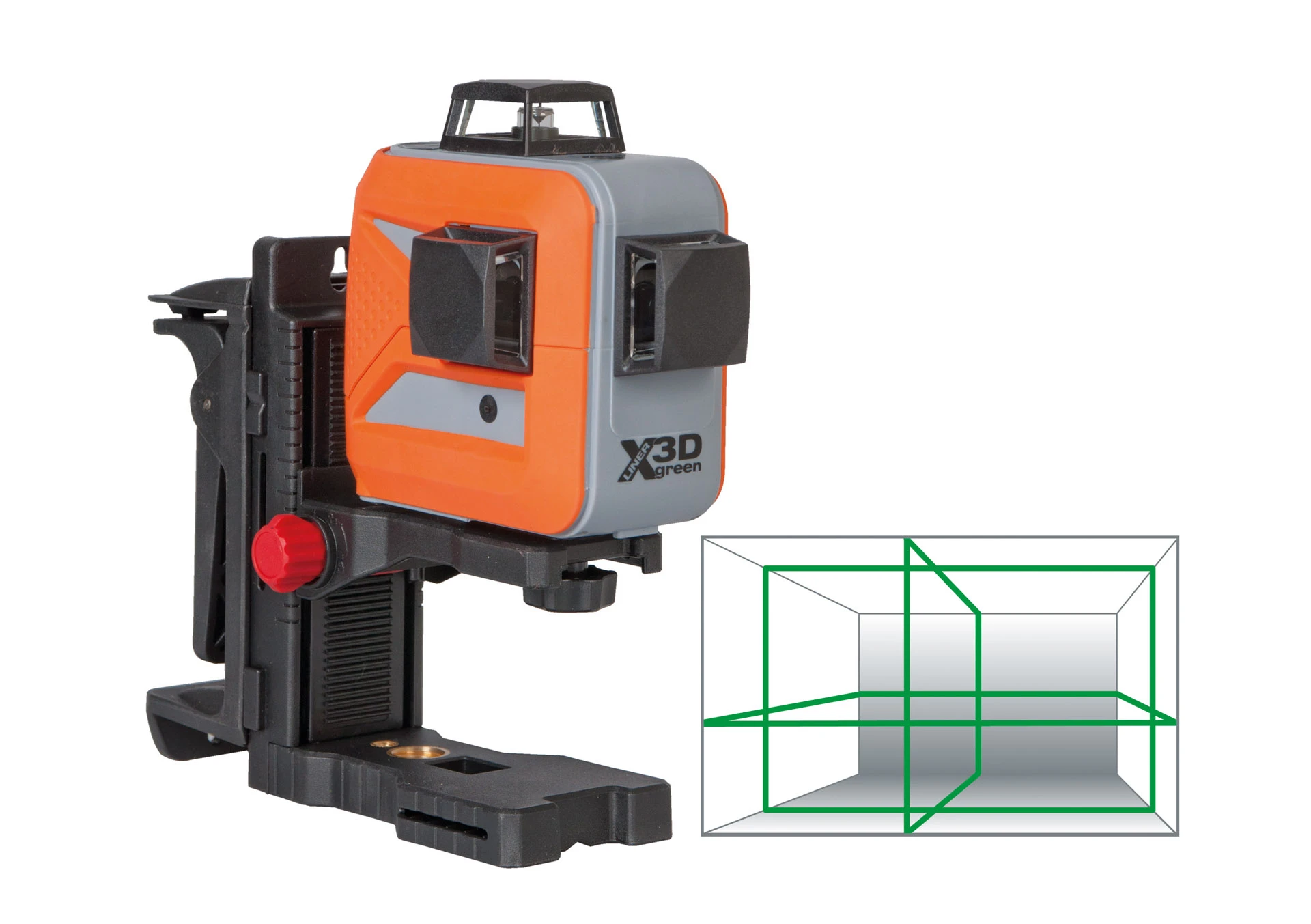

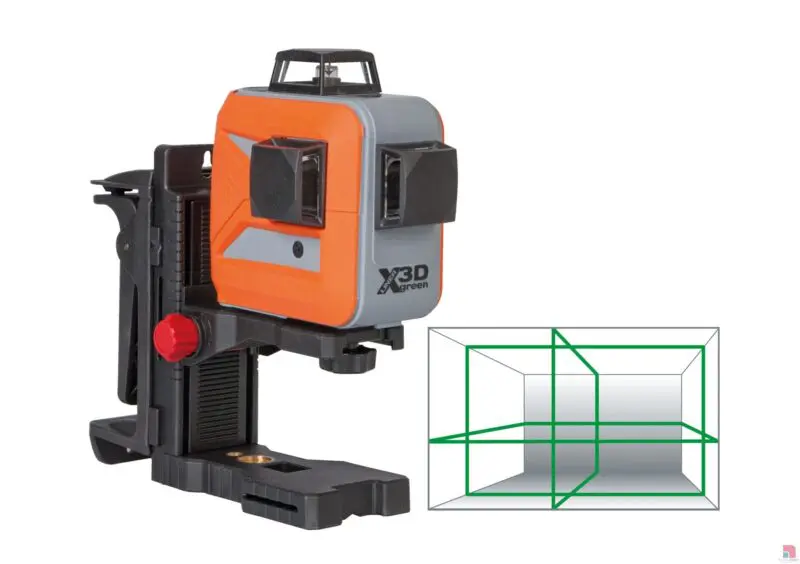

One laser cross each on four walls, laser cross on the ceiling and on the floor
Green laser lines for best visibility

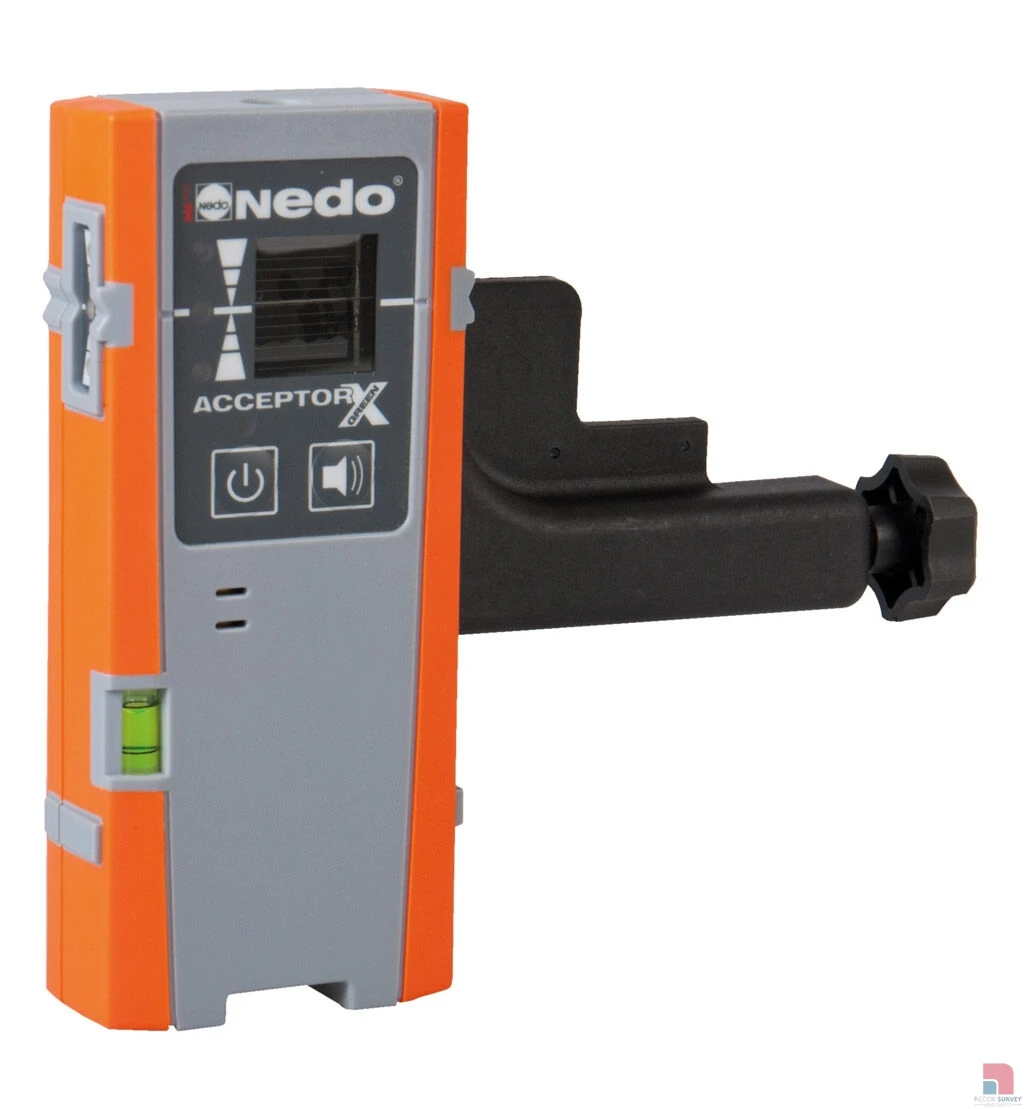

Pulse function for use with the optional laser receiver ACCEPTOR X green
Robust design for tough construction site use
Stable housing, splash-proof according to IP 54
Reliable self-levelling with magnetic damping
1/4″ and 5/8″ connection thread

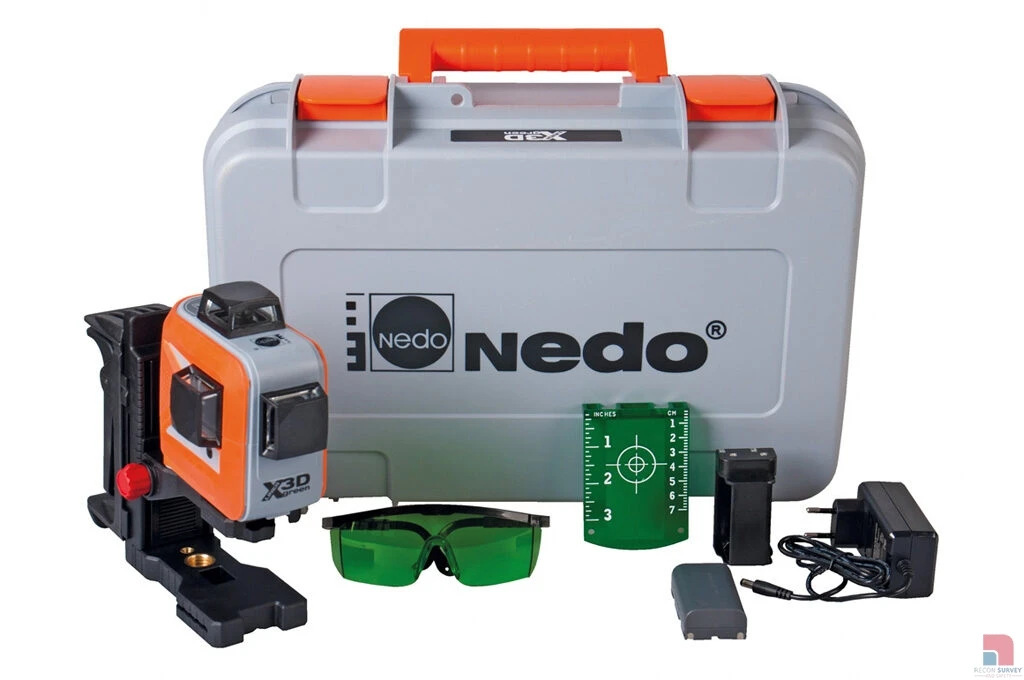

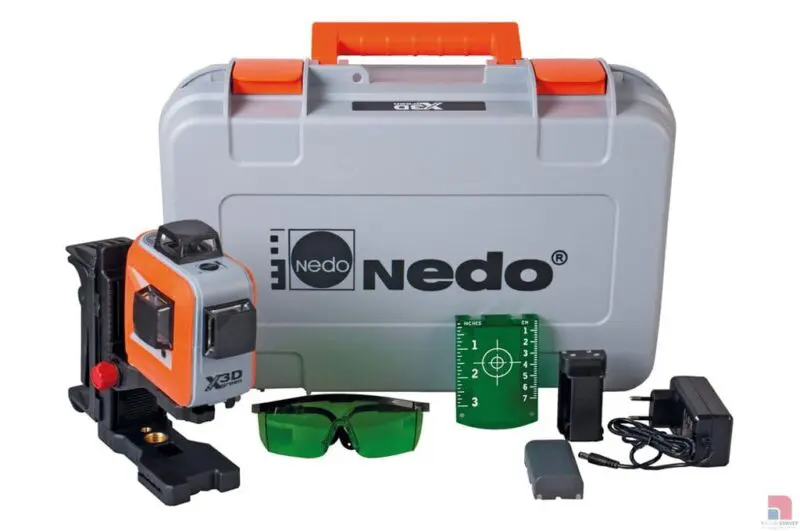

Li-ion batteries, battery charger and spare battery compartment

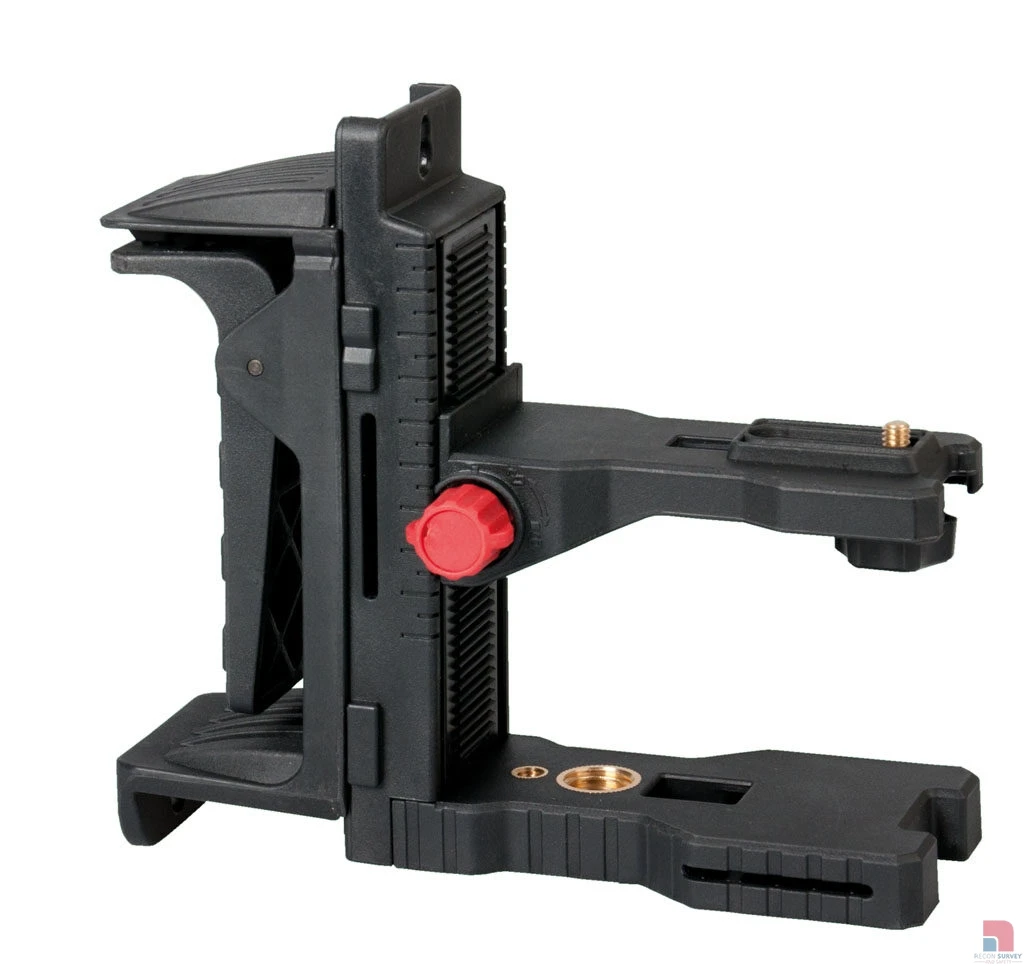

Height-adjustable multifunction wall bracket

6accuracy± 0.3mm/mself-

leveling range± 3°

working area Øapprox. 50 m without receiver
approx. 120 m with receiver

LaserLaser class 2,

515 nmprotection

classIP54

power supplyLi-ion battery 7.4 V 2600 mAh or
4 x 1.5 V type Mignon /

AAoperating timeup to 25 h

connection thread1/4” and 5/8”

Additional information

Add Accessories	No Accessories, Receiver

Brand

Nedo

For more than 115 years, Nedo Surveying Company has designed and manufactured smart measuring equipment of outstanding quality. Manufactured in Dornstetten, Germany and Switzerland, all Nedo brand products are made to exact specifications with a high amount of quality control. The reasons for their success is that Nedo products are innovative, offering first-class quality at reasonable prices; they're dependable with a persuasively attractive design. Nedo caters for customers requirements, by focusing on customers needs during the very first steps in the design of new equipment. Nedo Company not only wants to satisfy customers, they want to excite customers.
