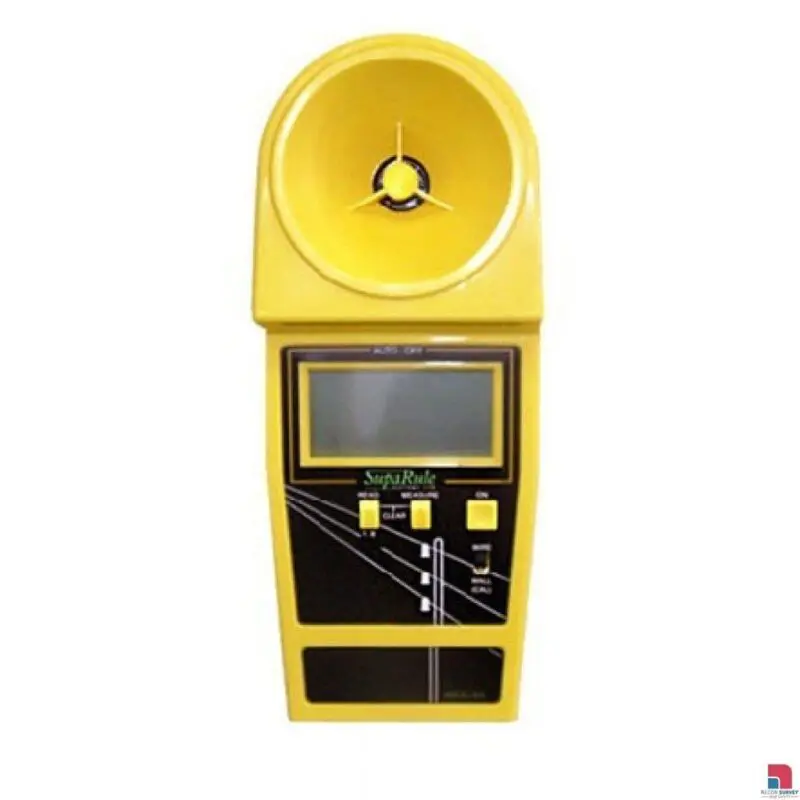

Suparule CHM300E Cable Height Meter

Measure cable sag and height difference as well as overhead clearance of conductors with this cable height meter from Suparule. The CHM300E is able to measure up to three wires and up to 23m height measurement.

A great alternative to telescopic measuring rods, the cable height meter is used by line operators within a utilities industry such as telecommunications. Emitting short bursts of sound, the microprocessor in the instrument calculates the elapsed time for the sound to be reflected from the cable back to the instrument. Obtained results can then be displayed in either metric or imperial units.

Range:

25mm Cable 3-23m

12mm Cable 3-15m
Features

0.5kg Weight
Compact Size
Auto Power off
50,000 Measurement Battery Life
0.5% ± 2 digits Accuracy
Three Wire Measurement
